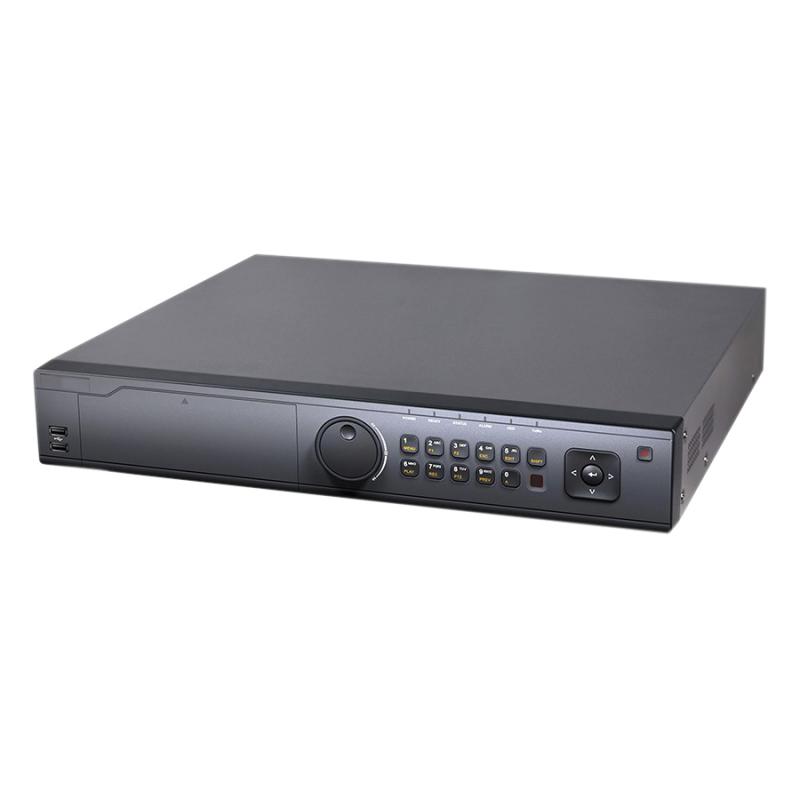

• Powerful bandwidth and scalable DVR allows you to connect to analog, HD-TVI, or IP cameras
• Easy to install with an intuitive interface provides all features needed for layouts, configuration and setup
• High definition surveillance with maximum reliability to help meet demands
|
Video Compression |
H.264 |
|
Analog and HD-TVI Video Input |
32ch BNC (1.0 Vp-p, 75 ), PAL / NTSC self-adapive |
|
Audio Compression |
G.711u |
|
Audio Input |
4-ch, RCA (2.0 Vp-p, 1 k ) |
|
Audio Input Interface |
4 Audio in |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 k ) |
|
VGA Output |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
|
HDMI Output |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
|
Recording Resolution |
Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF |
|
Frame Rate |
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA ; Main stream: 1/16 fps ~ Real time frame rate ; Sub-stream: 1/16 fps ~ Real time frame rate |
|
Video Bit Rate |
32 Kbps-4 Mbps |
|
Stream Type |
Video, Video & Audio |
|
Audio Output |
1-ch, RCA (Linear, 1 k ) |
|
Audio Bit Rate |
64 Kbps |
|
Dual Stream |
Support |
|
Playback Resolution |
1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
|
Synchronous Playback |
32ch |
|
Interface Type |
4 SATA interfaces for 4 HDDs; 1 eSATA interface |
|
Capacity |
Up to 4TB capacity for each disk |
|
Network Interface |
1:10M / 100M /1000M self-adaptive Ethernet interface |
|
USB Interface |
3 × USB2.0 |
|
Serial Interface |
RS-232, RS-485, Keyboard |
|
Power Supply |
100 ~ 240VAC, 47 ~ 63HZ |
|
Consumption |
65W |
|
Working Temperature |
-10 °C ~ +55 °C (14°F - 131°F) |
|
Working Humidity |
10% ~ 90% |
|
Chassis |
19-inch rack-mounted 1.5U chassis |
|
Dimensions |
445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch) |
|
Weight |
6Kg |
|
